【Size】107*35
【Package Size】55*35.5*29
Main feature
1.Manual test, Auto-reset
2.Photoelectric sensor
3.Sound& flash alarm
4.Single sided fiberglass PCB
5.High stability to the environment
6.High density SMT design,high stability
7.Dustproof,mothproof and anti-white light

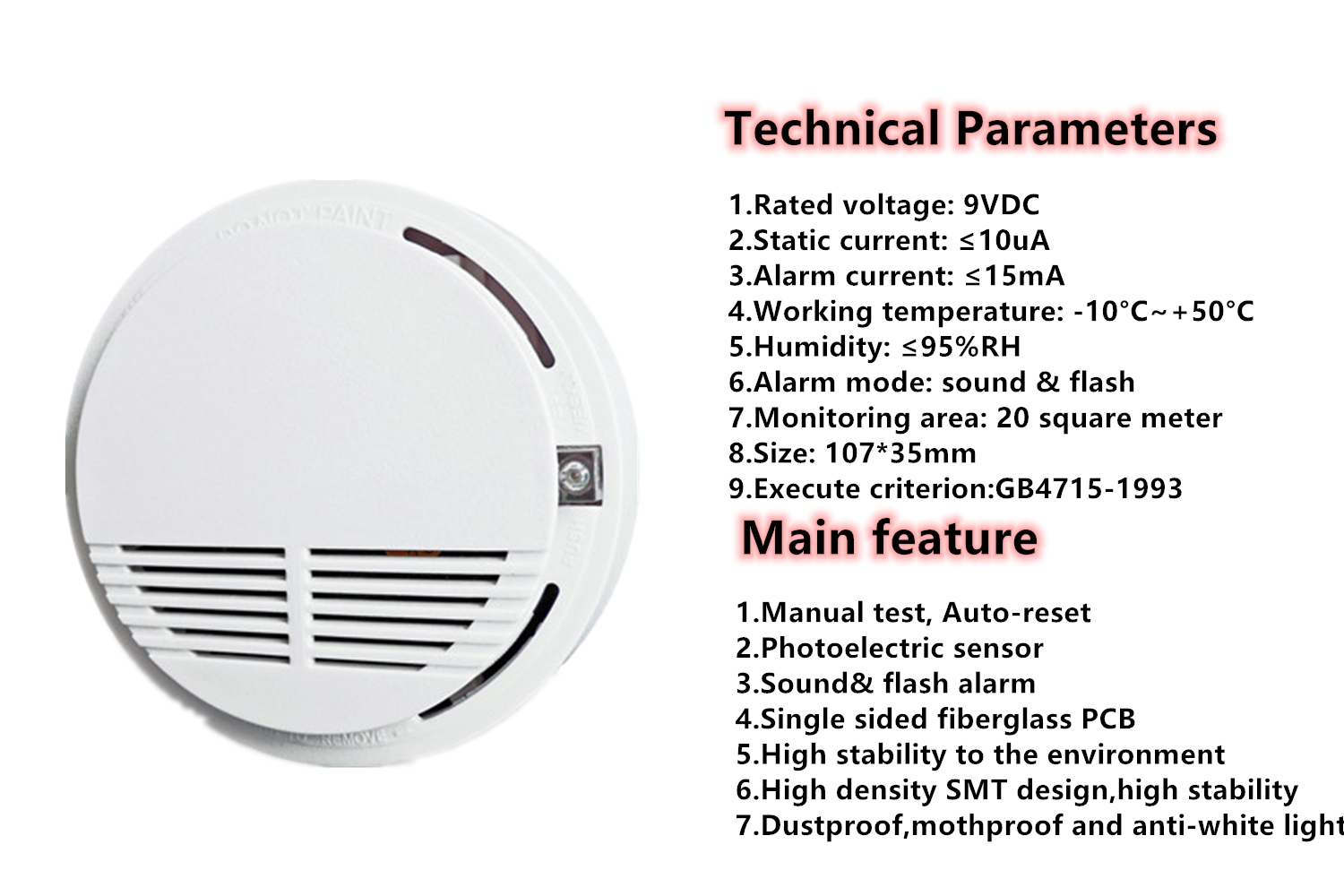

Technical parameter
1.Rated voltage: 9VDC
2.Static current: ≤10uA
3.Alarm current: ≤15mA
4.Working temperature: -10°C~+50°C
5.Humidity: ≤95%RH
6.Alarm mode: sound & flash
7.Monitoring area: 20 square meter
8.Size: 107*35mm
9.Execute criterion:GB4715-1993/CE
